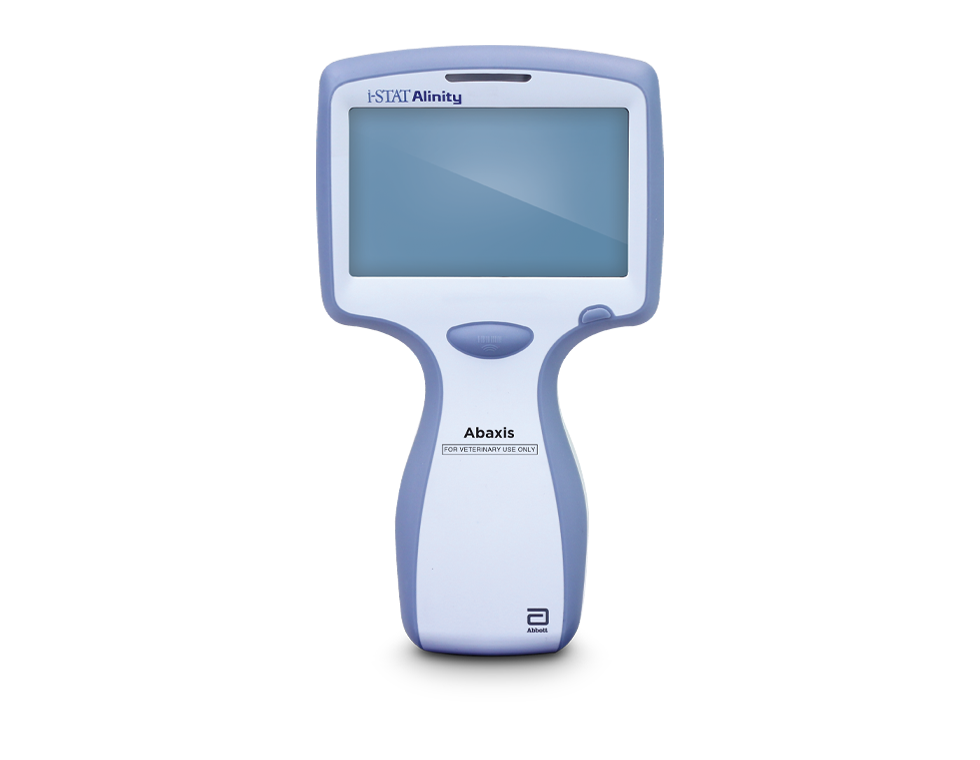

i-STAT Alinity v Handheld Analyzer

The Five-in-One Testing Platform

The i-STAT Alinity v is an advanced, easy-to-use, portable analyzer that delivers real-time, lab-quality results from 2-3 drops of whole blood in 2-3 minutes for blood gases, acid-base, electrolytes, chemistries and hematology. Making it the ideal solution for critical care situations, emergency hospitals, exotic animals, and research needs at the point-of-care.

Simple Operation

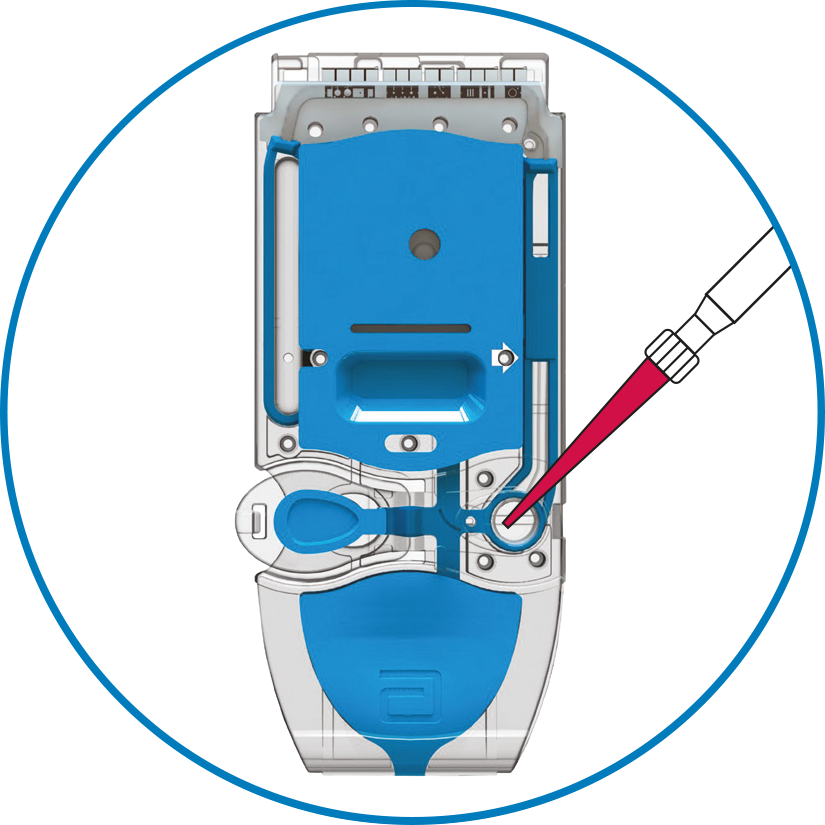

fill cartridge

Fill cartridge to fill line

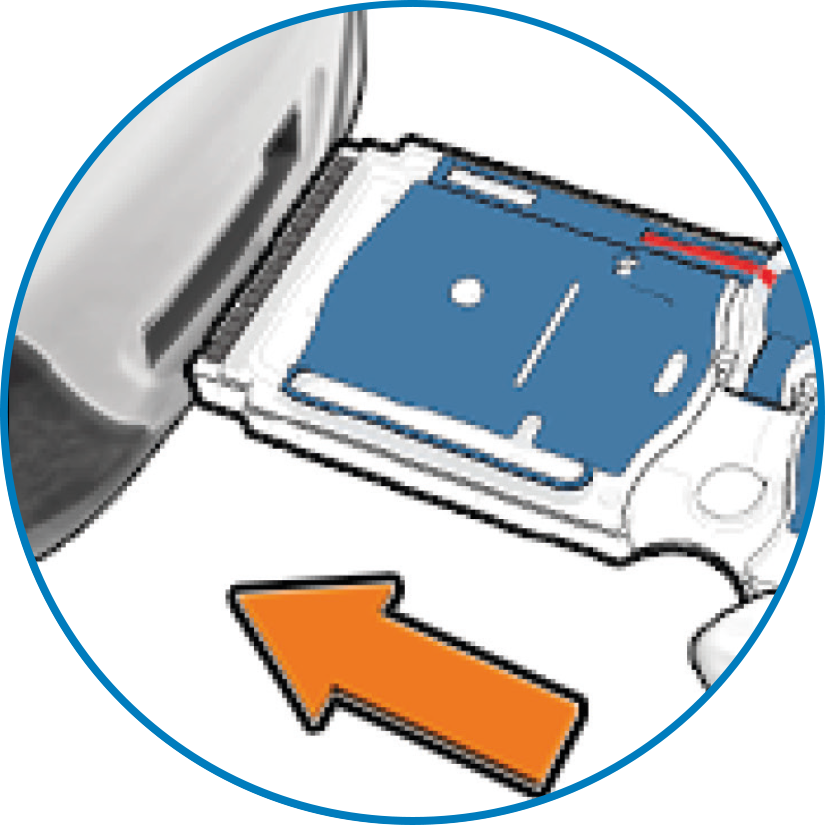

insert cartridge

Insert cartridge

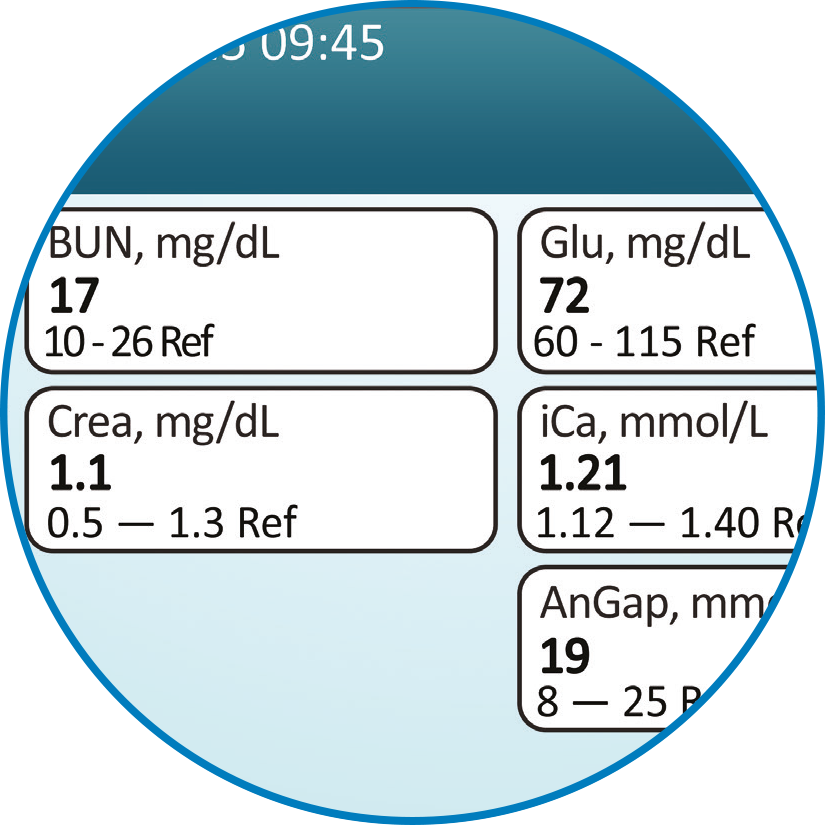

Read results

Read results on screen
in 2-3 minutes

Accurate Results

Built on the proven technology of the i-STAT, the i-STAT Alinity v analyzer delivers accurate results for blood gases, electrolytes, chemistries and hematology. It provides important information needed to monitor and evaluate chronic disease and pre-anesthetic patients and provide diagnostic specialty testing information for ill patients.

Proven Technology

PROVEN TECHNOLOGY FOR 10 YEARS

Test Portfolio

All Inclusive Blood Gas Electrolytes/
Basic
Single Tests
VETSCAN i-STAT Alinity v

CHEM8+

VETSCAN i-STAT Alinity v

CG4+

VETSCAN i-STAT Alinity v

E3+

VETSCAN i-STAT Alinity v

G

VETSCAN i-STAT Alinity v

EC8+

VETSCAN i-STAT Alinity v

CG8+

VETSCAN i-STAT Alinity v

6+

VETSCAN i-STAT Alinity v

Crea

A wide range of disposable cartridges, providing you with all the information you need to make a quick and confident patient assessment at the point-of-care.

Learn more about the Test Portfolio

MM-05195

Results to go

A wide range of disposable cartridges, providing you with all the information you need to make a quick and confident patient assessment at the point of care.

All Inclusive Cartridges

VETSCAN i-STAT Alinity v

CHEM8+

Provides the following 11 parameters:

Hct

Hgb

BUN

CRE

iCa++

GLU

Cl-

Na+

K+

tCO2

AG

VETSCAN i-STAT Alinity v

EC8+

Provides the following 13 parameters:

Hct

Hgb

BUN

GLU

Cl-

Na+

K+

pH

pCO2

HCO3

tCO2

AG

BE

Blood Gas Cartridges

VETSCAN i-STAT Alinity v

CG4+

Provides the following 8 parameters:

pH

pCO2

HCO3

tCO2

BE

pO2

sO2

LAC

VETSCAN i-STAT Alinity v

CG8+

Provides the following 13 parameters:

Hct

Hgb

iCa++

GLU

Na+

K+

pH

pCO2

HCO3

tCO2

BE

pO2

sO2

Electrolytes/Basic Cartridges

VETSCAN i-STAT Alinity v

E3+

Provides the following 5 parameters:

Hct

Hgb

Cl-

Na+

K+

VETSCAN i-STAT Alinity v

6+

Provides the following 7 parameters:

Hct

Hgb

BUN

GLU

Cl-

Na+

K+

Single Tests Cartridges

VETSCAN i-STAT Alinity v

G

Provides the following 1 parameter:

GLU

VETSCAN i-STAT Alinity v

Crea

Provides the following 1 parameter:

CRE

Acid-base, blood gas, electrolyte, chemistry, and hematology testing with one platform: Saves counter space and money while improving your in-house testing capability.

Analytes Overview

Hematology Hematocrit Hct
Hemoglobin* Hgb
Chemistry Blood Urea Nitrogen BUN
Creatinine CRE
Ionized Calcium iCa++
Glucose GLU
Electrolytes Chloride Cl-
Sodium Na+
Potassium K+
Acid Base Potential of Hydrogen pH
Partial Pressure of Carbon Dioxide pCO2
Bicarbonate* HCO3
Total Carbon Dioxide* tCO2
Anion Gap* AG
Base Excess* BE
Blood Gas Partial Pressure of Oxygen pO2
Oxygen Saturation* sO2
Specialty Lactate LAC

*Calculated Value

Learn more about the i-STAT Alinity v Specifications.

MM-05195

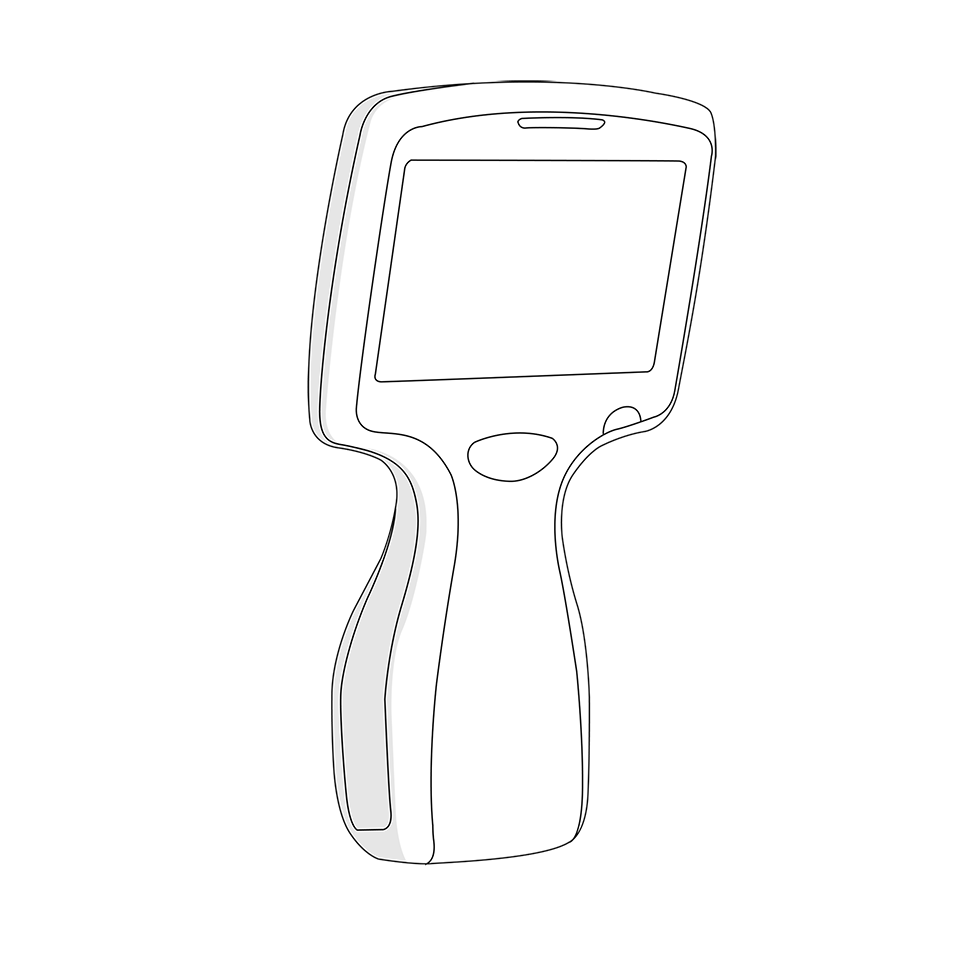

i-STAT Alinity v

Size

Height  25.6 cm / 10.1 in

Width  14.3 cm / 5.6 in

Depth  8.1 cm / 3.2 in

Weight  660 g / 1.5 lbs (without battery)

Weight  840 g / 1.9 lbs (with battery)

Key Facts at a Glance

  • Easy-to-use
  • Portable, lightweight ( 1.9 lbs)
  • Small sample size — 95 μL or less
  • Speed: results in approximately 2-3 minutes
  • Low maintenance
  • Calibration not required
  • Large high-resolution, color touch screen
  • Accurate and reliable

Details

Operating Temperature 16 - 30 °C (61 - 86 °F) for VETSCAN i-STAT cartridge testing
Storage Temperature and Humidity 10 to 60°C (14 to 140°C)
10 to 90% non-condensing, with maximum saturation temperature of 50°C (122°F)
Altitude Up to 3,048 meters (10,000 feet)
Display 5 in, 800 x 480 pixels with touchscreen, measured diagonally
Power source Lithium Ion Rechargeable Battery, 3.65 (nominal)
VDC, 19.3 Wh

Do you have any further questions? Please email VETSCAN Customer Service at customerservice.SSA@zoetis.com
